Heat2D: a 2D heat equation solver

About

Heat2D is a C++ lightweight numerical library for solving 2D parabolic and elliptic partial differential equations (PDEs) of the form

\frac{\partial u}{\partial t} = \nabla\cdot(\alpha\nabla u) + f,

where u = u(x,y,t) usually represents a diffusive variable, \alpha = \alpha(x,y) is the (linearly) space-dependent diffusivity and f=f(x,y,t) is a source term. Only axis-aligned, rectangular 2D domains are considered.

This project is designed to separate the spatial discretization from the time integration in a modular and structured way. Sparse linear algebra is used with Eigen to improve performance and reduce memory consumption.

Features

• Fully functional, structured 2D meshes with easy node/coordinate access.
• Boundary condition abstraction. Dirichlet and Neumann boundary conditions are supported.
• Second-order finite difference discretization for Laplace/Poisson equation.
• First and second-order time integration schemes are implemented, both explicit and implicit.
• Output PDE solutions in .csv format.

Description

The project is centered around the association of classes representing the different concepts in the discretization of the general heat equation, revolving around the HeatPDE2D class.

Preliminaries

The aforementioned parabolic PDE is fully characterized by defining the physical domain \Omega\in\mathbb{R}^2 alongside boundary conditions in the border \partial\Omega =\partial\Omega_{l}\cup\partial\Omega_{r}\cup\partial\Omega_{b}\cup\partial\Omega_{t} (representing, respectively: left, right, bottom and top boundaries), thermal diffusivity \alpha, source f, and initial condition u_0 alongside an initial time t_0.

Possibly \partial_t u=0 and -\nabla\cdot(\alpha\nabla u) = f, in the so-called Poisson (Laplace if f=0) equation. This elliptic PDE can also be solved and does not require an initial condition.

Class hierarchy

HeatPDE2D takes care of solver functionality and incorporates both the spatial discretization and the time integration. It thus requires an instance of both spatial::SpatialDiscretization2D and temporal::TimeIntegrator. These are abstract base classes designed to provide a skeleton for their respective application.

Spatial discretization

spatial::SpatialDiscretization2D represents the spatial discretization of the spatial term \nabla\cdot(\alpha\nabla u) of the PDE in \Omega and \partial\Omega. As such, it requires a mesh description (no mesh-free approaches), as well as boundary conditions, and the functions \alpha and f. For the moment, the only implementation of this class is spatial::FiniteDifference2D, which employs the finite difference method.

Another abstract base class is represented in spatial::Mesh2D, currently implemented by spatial::StructuredMesh2D (unstructured meshes are planned for the future). This can be instantiated by providing the utility struct Domain2D, which defines the axis-aligned 2D rectangular domain \Omega based on the coordinates of its sides: x_l, x_r, y_b and y_t (in this order); along with the number of desired nodes in each direction, n_x and n_y.

Boundary conditions are specified as a map from DomainSide to an std::shared_ptr<BoundaryCondition>>, supporting both DirichletBoundaryCondition and NeumannBoundaryCondition. Each takes a std::function<double(double,double,double)> describing the boundary value as a function of position and time.

Finally, spatial::SpatialDiscretization2D uses std::function<double(double,double,double)> to describe the source term f, and std::function<double(double,double)> for the diffusivity \alpha.

Internally, the problem is discretized using all these constructs into an Eigen::SparseMatrix<double>, which is built once for increased performance.

Time integrator

temporal::TimeIntegrator is the base class for a time integration scheme, either explicit or implicit. It only takes the timestep dt as input parameter and defines the member function step, which takes care of time-marching for a solution. There are currently three implementations for this class, each with a different step:

• temporal::ExplicitEuler: a first-order explicit time integrator. For the time being, no stability checks are made. It's up to the user to ensure the CFL condition holds

\frac{dt}{h^2} < \frac{1}{4\alpha}

• temporal::ImplicitEuler: a first-order implicit time integrator. The constant part of the resulting system of equations is pre-computed for increased performance using setUp. If used without HeatPDE2D, setUp is must be run before step.
• temporal::CrankNicolson: a second-order implicit time integrator. The same conditions for setUp as before apply here.

Solution writer

A small class SolutionWriter takes care of writing the output of the solution into a file in CSV format.

Build & Test

Requirements: C++17 compiler, CMake 3.14+, Eigen3

git clone https://github.com/paurierap/heat-2D
cd heat-2D
cmake -S . -B build
cmake --build build --parallel
ctest --test-dir build --verbose

To build the examples:

cmake -S . -B build -DBUILD_EXAMPLES=ON
cmake --build build --parallel
./build/examples/heat2d_examples

Using in your own project: Heat2D is a header-heavy library. Add it as a subdirectory in your CMake project:

add_subdirectory(heat2D)
target_link_libraries(your_target PRIVATE HeatPDE)

Usage

As an example, let us take the solution portrayed at the top of the README. Let us assume we want to solve the 2D heat equation with isolated boundary conditions (i.e., null Neumann BCs) in the unit square \Omega=[0,1]\times[0,1], with a non-uniform \alpha(x,y) = 0.005 + 0.02e^{-8(x-0.5)^2(y-0.5)^2}. This thermal diffusivity is slightly higher in the center, therefore heat spreads faster in that region.

Furthermore, we add a moving source term around a circle of radius r=0.25 centered at (0.5,0.5) corresponding to a Gaussian pulse f (x,y,t) = e^{-60(x-0.5+r\cos{t})^2(y-0.5+r\sin{t})^2}. At t_0=0, we have u_0=0. We thus have

\frac{\partial u}{\partial t} = \nabla\cdot\left(\alpha\nabla u\right) + f,

with

(\nabla u\cdot\mathbb{\hat{n}})|_{\partial\Omega_i}=0,\ \text{and}\ u (x,y,0) = 0.

Meshing the domain

Two alternatives exist, using Domain2D or just directly the coordinates of \partial\Omega. Note that the order must be preserved. In addition, we use n=n_x=n_y=101:

#include "StructuredMesh2D.hpp"

int n = 101;
double left = 0, right = 1, bottom = 0, top = 1;
spatial::Domain2D Omega{0, 1, 0, 1};

// From Domain2D
const spatial::StructuredMesh2D mesh(Omega, n, n);

// From side coordinates
const spatial::StructuredMesh2D mesh(left, right, bottom, top, n, n);

Spatial Discretization

First, the boundary conditions over \partial\Omega need to be specified. Since all sides are isolated, we can get away with one lambda function:

#include <functional>

#include "NeumannBoundaryCondition.hpp"

auto zeroBC = [](double, double, double){return 0.0;};

spatial::BoundaryConditions bc;
bc[spatial::DomainSide::Left]   = std::make_shared<spatial::NeumannBoundaryCondition>(zeroBC);
bc[spatial::DomainSide::Right]  = std::make_shared<spatial::NeumannBoundaryCondition>(zeroBC);
bc[spatial::DomainSide::Bottom] = std::make_shared<spatial::NeumannBoundaryCondition>(zeroBC);
bc[spatial::DomainSide::Top]    = std::make_shared<spatial::NeumannBoundaryCondition>(zeroBC);

In addition, we must define the diffusivity \alpha(x,t) and source f(x,y,t) terms:

// Thermal diffusivity
auto alpha = [](double x, double y)
{
    double r = std::sqrt((x-0.5)*(x-0.5) + (y-0.5)*(y-0.5));
    return 0.005 + 0.02 * std::exp(-8.0 * r * r);
};

// Moving source
auto source = [](double x, double y, double t)
{
    double cx = 0.5 + 0.25 * std::cos(t);
    double cy = 0.5 + 0.25 * std::sin(t);
    return 1.0 * std::exp(-60.0 * ((x-cx)*(x-cx) + (y-cy)*(y-cy)));
};

Finally, a FiniteDifference2D object can be instantiated:

#include "FiniteDifference2D.hpp"

// Spatial discretization object
spatial::FiniteDifference2D fd(alpha, mesh, bc, source);

Solving the heat equation

Once the spatial domain \Omega has been discretized, we choose a time integrating scheme. For best performance, let us use CrankNicolson. Then:

#include "HeatPDE2D.hpp"

// Time integrator
double dt = 0.1;
temporal::CrankNicolson ti(dt);

// Initial condition
auto u0 = [](double, double){return 0.0;};

// Initialize heat equation solver
double t0 = 0;
HeatPDE2D solver(fd, ti, t0, u0);

Finally, the last step consists of integrating the heat equation and writing the solution on an output file in csv format. The convenience class SolutionWriter takes care of that. We will solve the heat equation until t_f=4\pi, corresponding to two full orbits of the moving source. The HeatPDE2D::integrate member function takes the final integration time t_f and, optionally, a callback function that specifies how often should the solution be written on output. This function is called for every timestep when iterating over the integration time. The signature of the callback function is always auto callback = [&](double t, const Eigen::VectorXd& u, where u is an Eigen vector containing the vectorized solution at time t. Here we write the solution every two timesteps:

#include <Eigen/Dense>
#include <string>

#include "SolutionWriter.hpp"

std::string output_filename = "moving-source.csv";
SolutionWriter writer(output_filename);

// Integrate solution and write on output_filename
double tf = 4.0 * M_PI;
int step = 0;
solver.integrate(tf, [&](double t, const Eigen::VectorXd& u)
{
    // Write every 2 steps
    if (step % 2 == 0) writer.write(mesh, u, t);
    ++step;
});

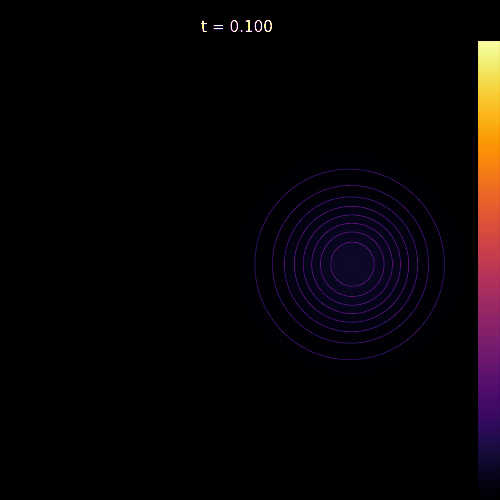

Plotting the data in moving-source.csv leads to a rather nice-looking animation!

Examples

Many cool-looking physical animations can be simulated by tweaking the different variables/parameters of the heat equation. Two other examples are available in heat2D/examples/:

• Colliding pulses: four initial Gaussian pulses are located at the center of each quadrant in \Omega = [0,1]\times[0,1] with enforced null Dirichlet boundary conditions. Vertical diffusion is faster due to a non-linear thermal diffusivity \alpha(y) = 0.01e^{-25(y-0.5)^2}:

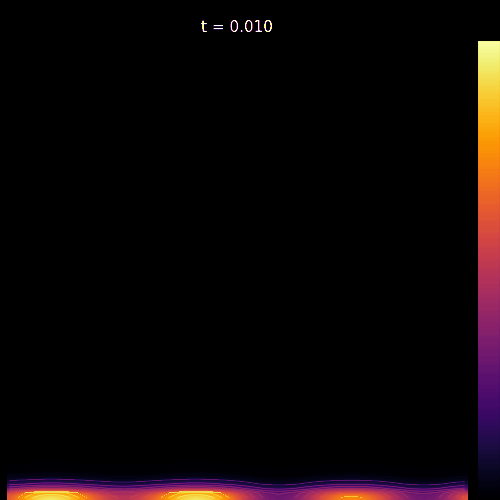

• Thermal mirage: A sinusoidal Dirichlet boundary condition is applied at the bottom whilst keeping the rest of the borders isolated, generating the effect of a thermal mirage. There is no heat source nor initial condition. The domain heats up as a consequence of the boundary condition u(x,0,t) = 0.5 + 0.1\sin{\left(2\pi x + t\right)} + 0.2\sin{\left(6\pi x- 2t\right)} and diffusivity \alpha(y) = 0.02 + 0.01e^{-y}:
